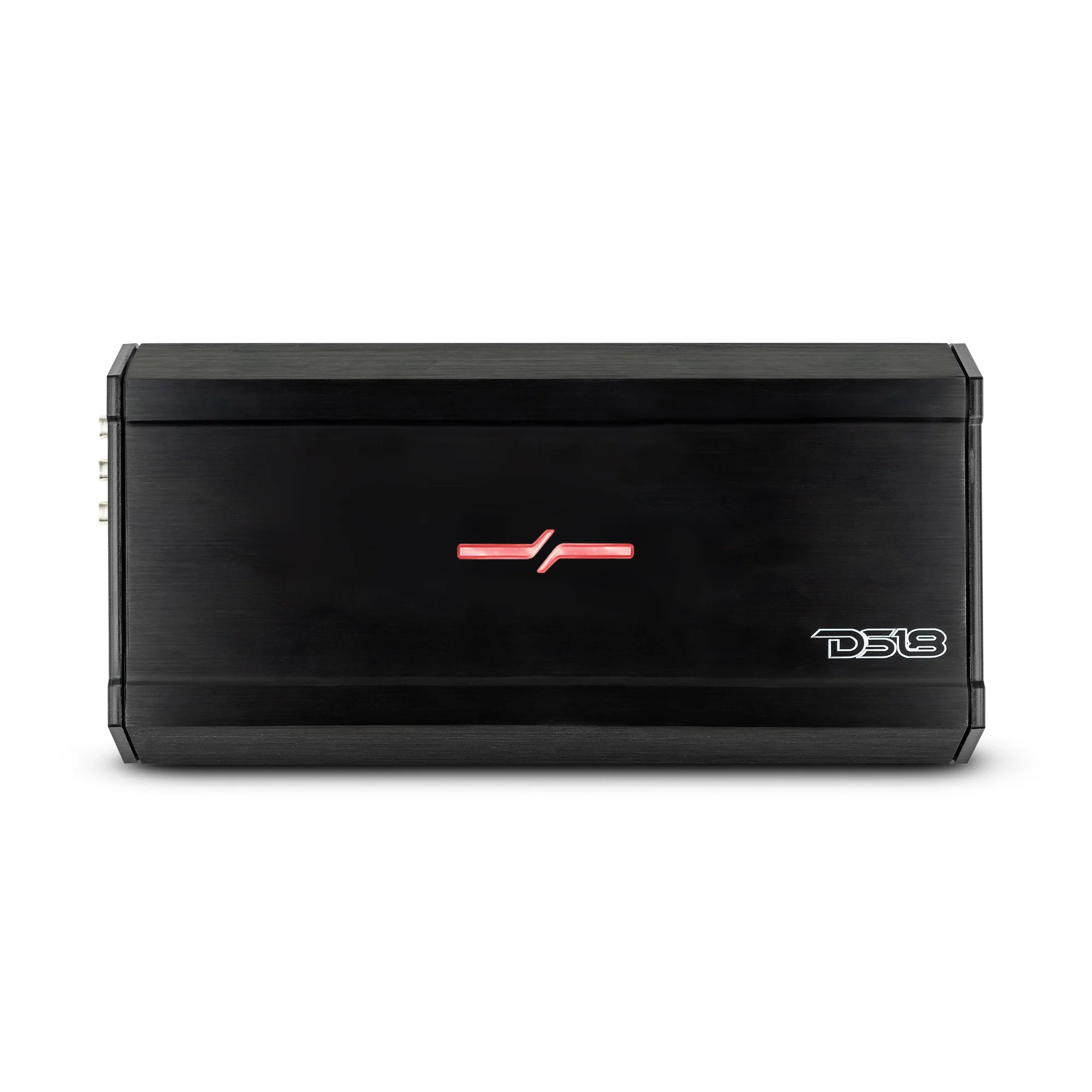

DS18 ELITE ZXI.6 Full-Range 6 - Channel Class D Amplifier
200 Watts X 6 @ 4 - Ohm RMS

Years of knowledge and experience has gone into the development of the ZXI amplifier series!

As one of our best selling lines, it’s only right we honor it with an EXTREME upgrade!

The ZXI.6 is one of the most versatile amplifiers in our catalog: this Full-Range 6-Channel Amplifier outputs enough power to supercharge any powerful competitive or casual sound system!

Built from top of the line components (Block Style Terminals, Fully Variable Crossover, Platinum Finish Connections, and High Quality Protection Circuitry) this amplifier is guaranteed to deliver insane quantities of RMS Power on demand!

As a Class D amplifier, the ZXI.6 uses power transformers significantly smaller than your average amplifier, making it the perfect size for any vehicle’s custom build: but, what it lacks in size it makes up for in power.

The ZXI.6 handles 200W x 6CH @ 4 OHM; 320W x 6CH @ 2 OHM; and 640W x 3CH @ 4 OHM Bridge of RMS Power.

Order your ZXI Amplifier today to take your system to the next level!

Highlights

Platinum finish connections that resist corrosion
Fully Variable Crossovers
Protection Circuitry against Overload, Short Circuit, Thermal, Low Voltage, High Voltage, and Reverse Polarity
Filters are included so you can adjust the high pass and low pass filters so your speakers perform at their best.
0 to 180 degree phase switch is included for more complex systems that need the phase reversed.
Fuses included on the amplifier for easy access and amp circuitry protection.
The terminals are stainless and use Allen keys to tighten for the best connectivity possible.

Great For

Car Audio
Pro Audio
Stunt Walls
Motorcycle Audio
Powersports Audio
DIY Project

Technical Details

Download ZXI.6 Product Manual

SPECIFICATIONS
POWER
Total Watts (Peak)	5800W
RMS Power @ 4 ohm	6 x 200W
RMS Power @ 2 ohm	6 x 320W
RMS Power @ 4 ohm Bridge	3 x 640W
AUDIO
Frequency Response	20Hz-20KHz
Signal to Noise Ratio	>90dB
Efficiency @ 4ohm	>85%
Damping Factor	>200
Total Harmonic Distortion (THD)	<0.3%
Low Level Input Range	0.2 - 6v
High Level Input	No
Selectable X-Over	LPF/FULL/HPF
X-Over Filter Range	50Hz-5KHz
Bass Boost Range	No
Bass Boost Frequency	No
Infrasonic Filter	No
Phase Selector	No
FEATURES
Amplifier Class	Digital
Amplifier Type	Stereo Full Range
Number of Channels	6
Minimum Impedance	2 ohm (Stereo) / 4 ohm (Bridge)
Led Indicator	Power/Protection/Clip
Power Input Terminal Size	4ga
Fuse Size	160A (External)
Remote Level Control	No
Cooling Fan	No
Voltmeter	No
Thermal Protection	Yes (>160°F / 71°C)
Over-Load Protection	Yes
DC Output Protection	Yes
Short Circuit Output Protection	Yes
Voltage Input Protection	Yes
Clipping Protection	Yes
Body Color / Finish	Black Aluminum Brush
MEASUREMENT
Overall Length	12.2" / 310mm
Overall Wide	5.66" / 144mm
Overall Height	1.9" / 48.5mm
Heatsink Length	11.42" / 290mm
Gross Single Unit Weight	6 lb / 2.72 kg

DS18 ELITE ZXI.6 Full-Range 6 - Channel Class D Amplifier 200 Watts X 6 @ 4 - Ohm RMS

Technical Details

DS18 ELITE ZXI.6 Full-Range 6 - Channel Class D Amplifier
200 Watts X 6 @ 4 - Ohm RMS

6-Channel Amplifiers

Price

Collections

ZXI 6-Channel Class D Amplifier 6 x 200 Watts Rms @ 4-Ohm

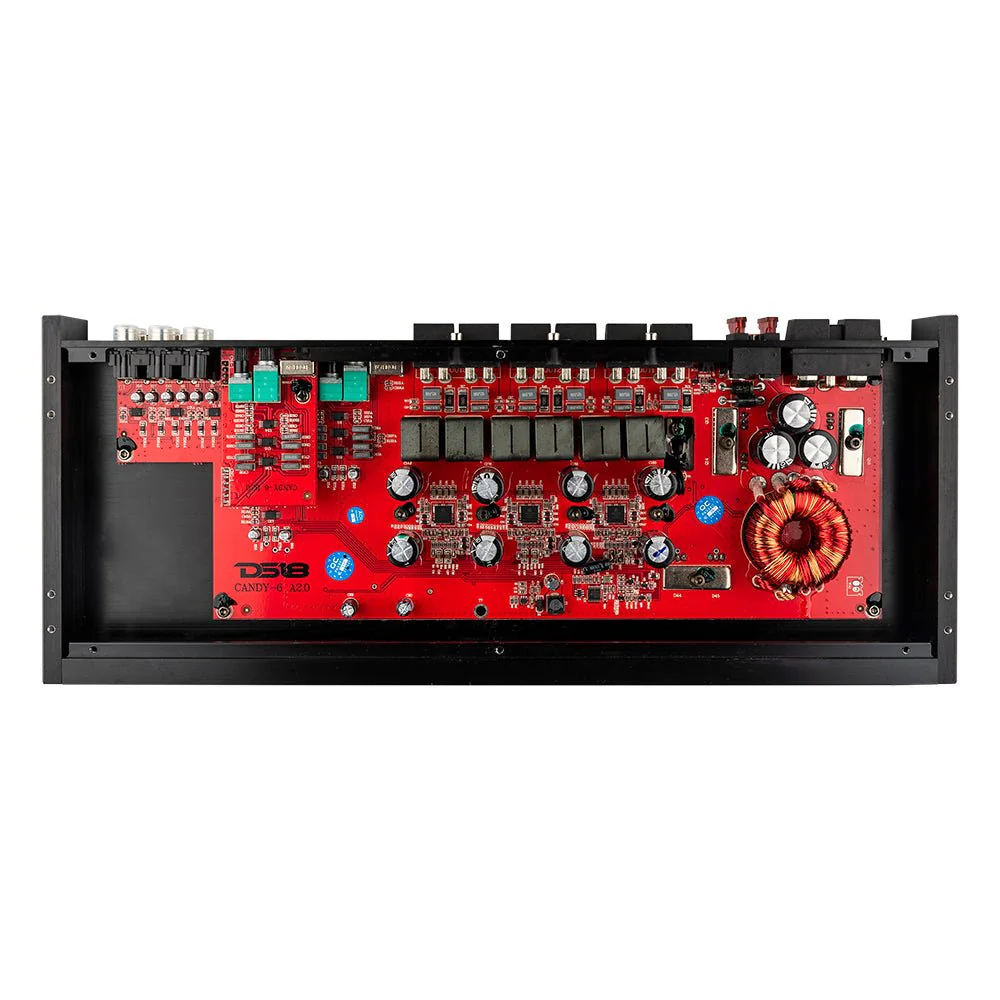

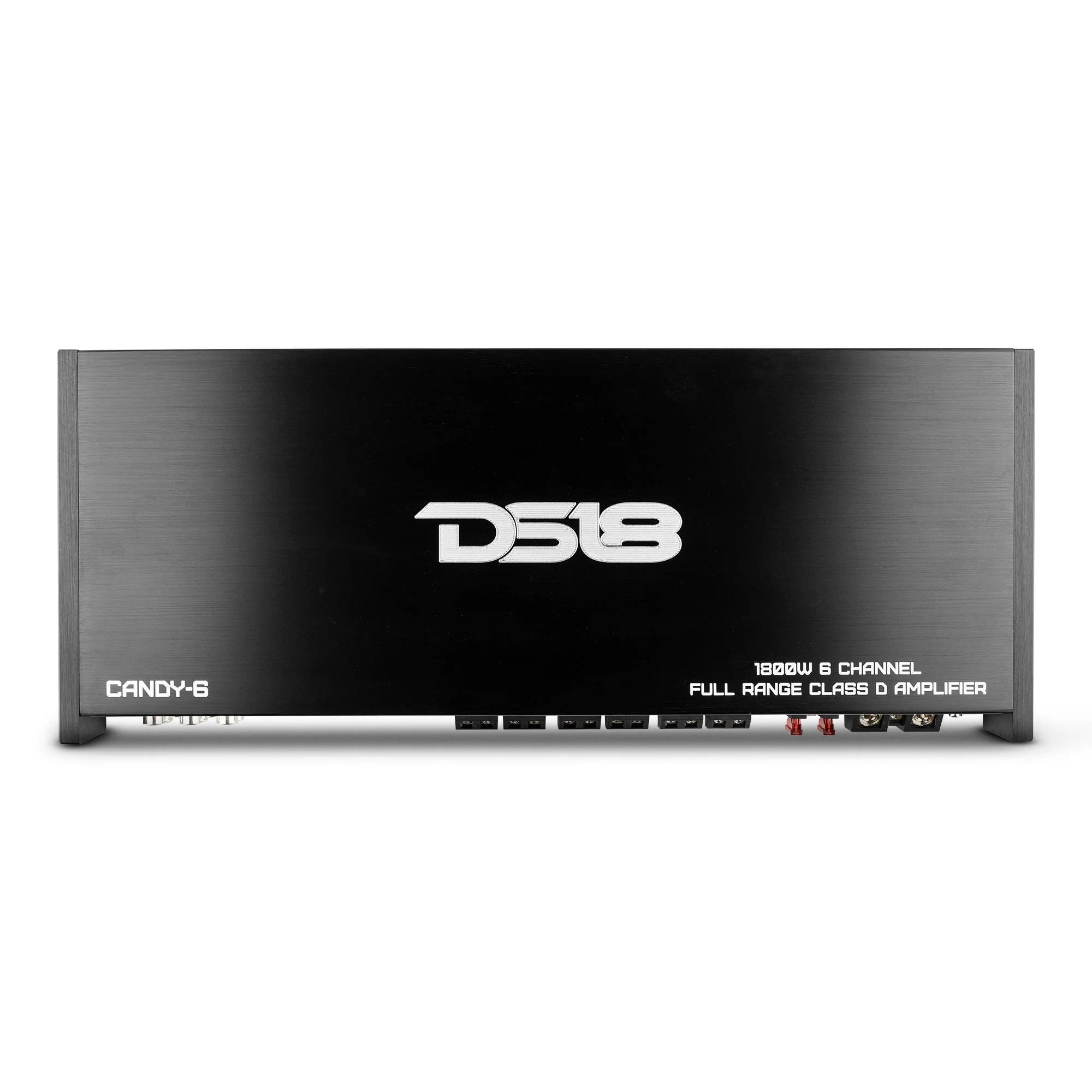

DS18 CANDY-6 Full-Range Class D 6-Channel Car Amplifier 1800 Watts
