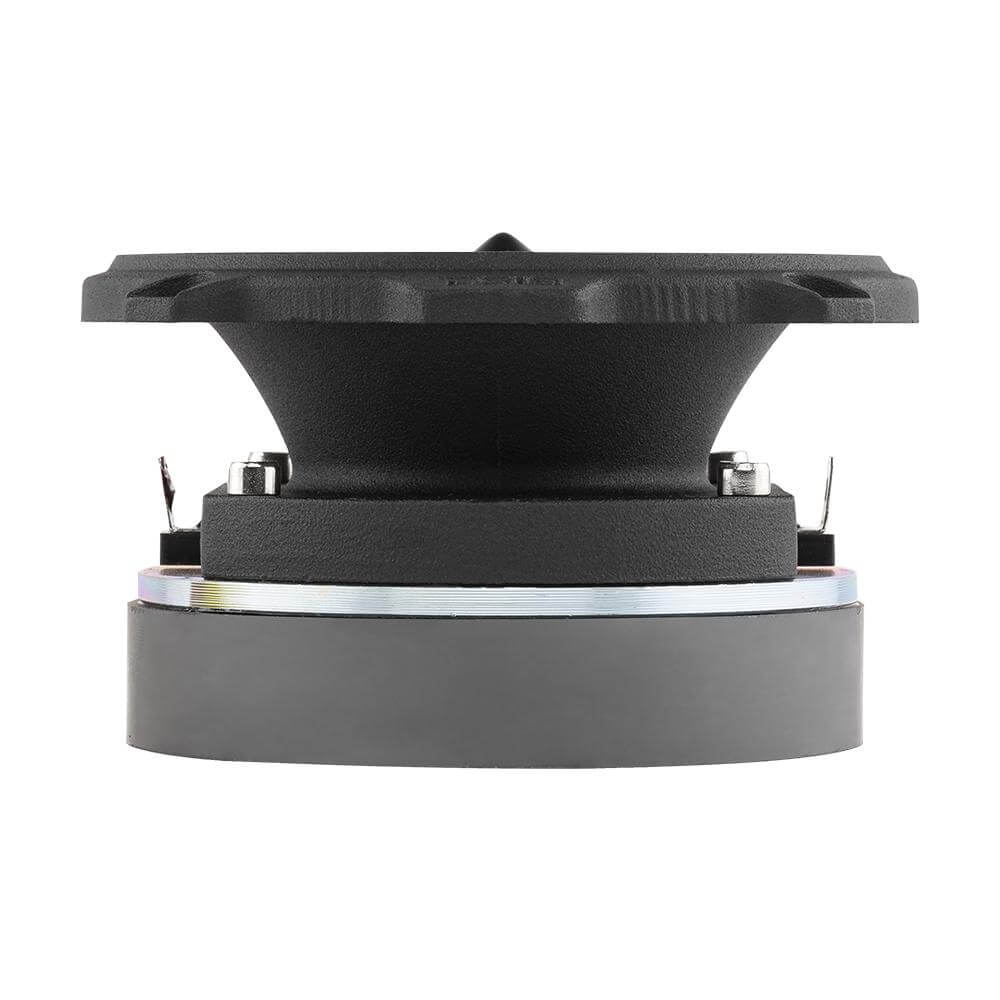

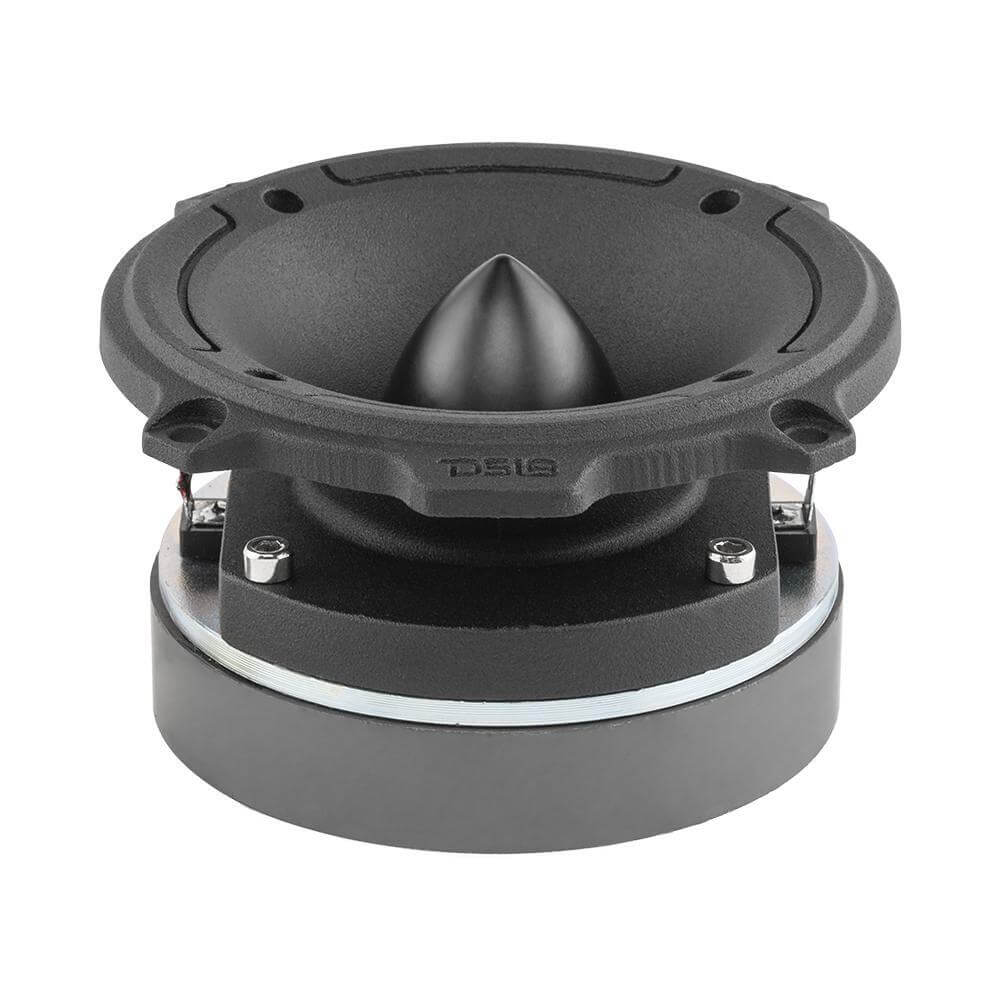

DS18 PRO-TW320.8 4" Super Tweeter with Bullet 8 Ohms (Single)
DS18 PRO-TW320.8 4" Super Tweeter with Bullet 8 Ohms (Single)
The PRO-TW 320.8 has all the characteristics of our best-selling counterpart except now we offer them in 8-ohm for even more possibilities of connections in your vehicle. This high intensity super tweeter has a sensitivity of 107 dB so it does not require full RMS power to get very loud. These super-tweeters handle an RMS of 250w and a maximum power of 500w. With such a high frequency range of 1.6KHz to 20KHz, you will be sure not to miss out on every hiss of a high hat and every cymbal crash. These die cast aluminum super tweeters house a massive 1.5-inch aluminum diaphragm and are easily replaceable with an allen key and 3 minutes of your time, ensuring fast and easy repair even on the go!
Highlights
- Extremely loud design that will let you pick your tweeter volume from subtle to extreme by making small adjustments to your amplifier.
- High Power super Tweeter bullet design brings extreme high range volume that can be heard for great distances and fill out your frequency range effortlessly.
- Designed to be repaired quickly and easily with our drop in voice coil kits that install in less than 5 minutes.
Technical Details
| Model: | PRO-TW320.8 |
| Type: | Super Bullet Tweeter |
| Peak Power Handling | 480 Watts |
| Program Power Handling | 240 Watts |
| AES Power Handling | 120 Watts |
| Voice Coil Diameter: | 1.5" |
| Diaphragm Material: | Aluminum |
| Sensitivity: | 107dB |
| Impedance: | 8 Ohms |
| Frequency Response: | 1.6KHz - 20KHz |
| Package Quantity: | 1 |
| Magnet Weight | 14.3 Oz |
| Replacement Diaphragm: | PRO-TW320VC |
| Magnet | Ferrite |
| Measurements | |
| Overall Depth | 2.57" |
| Mounting Depth | 2.22" |
| Overall Width | 4.01" |
| Cutout Diameter | 3.54" |
DS18 PRO-TW320.8 4" Super Tweeter with Bullet 8 Ohms (Single)
The PRO-TW 320.8 has all the characteristics of our best-selling counterpart except now we offer them in 8-ohm for even more possibilities of connections in your vehicle. This high intensity super tweeter has a sensitivity of 107 dB so it does not require full RMS power to get very loud. These super-tweeters handle an RMS of 250w and a maximum power of 500w. With such a high frequency range of 1.6KHz to 20KHz, you will be sure not to miss out on every hiss of a high hat and every cymbal crash. These die cast aluminum super tweeters house a massive 1.5-inch aluminum diaphragm and are easily replaceable with an allen key and 3 minutes of your time, ensuring fast and easy repair even on the go!
Highlights
- Extremely loud design that will let you pick your tweeter volume from subtle to extreme by making small adjustments to your amplifier.
- High Power super Tweeter bullet design brings extreme high range volume that can be heard for great distances and fill out your frequency range effortlessly.
- Designed to be repaired quickly and easily with our drop in voice coil kits that install in less than 5 minutes.
Technical Details
| Model: | PRO-TW320.8 |
| Type: | Super Bullet Tweeter |
| Peak Power Handling | 480 Watts |
| Program Power Handling | 240 Watts |
| AES Power Handling | 120 Watts |
| Voice Coil Diameter: | 1.5" |
| Diaphragm Material: | Aluminum |
| Sensitivity: | 107dB |
| Impedance: | 8 Ohms |
| Frequency Response: | 1.6KHz - 20KHz |
| Package Quantity: | 1 |
| Magnet Weight | 14.3 Oz |
| Replacement Diaphragm: | PRO-TW320VC |
| Magnet | Ferrite |
| Measurements | |
| Overall Depth | 2.57" |
| Mounting Depth | 2.22" |
| Overall Width | 4.01" |
| Cutout Diameter | 3.54" |
Description
DS18 PRO-TW320.8 4" Super Tweeter with Bullet 8 Ohms (Single)
The PRO-TW 320.8 has all the characteristics of our best-selling counterpart except now we offer them in 8-ohm for even more possibilities of connections in your vehicle. This high intensity super tweeter has a sensitivity of 107 dB so it does not require full RMS power to get very loud. These super-tweeters handle an RMS of 250w and a maximum power of 500w. With such a high frequency range of 1.6KHz to 20KHz, you will be sure not to miss out on every hiss of a high hat and every cymbal crash. These die cast aluminum super tweeters house a massive 1.5-inch aluminum diaphragm and are easily replaceable with an allen key and 3 minutes of your time, ensuring fast and easy repair even on the go!
Highlights
- Extremely loud design that will let you pick your tweeter volume from subtle to extreme by making small adjustments to your amplifier.
- High Power super Tweeter bullet design brings extreme high range volume that can be heard for great distances and fill out your frequency range effortlessly.
- Designed to be repaired quickly and easily with our drop in voice coil kits that install in less than 5 minutes.
Technical Details
| Model: | PRO-TW320.8 |
| Type: | Super Bullet Tweeter |
| Peak Power Handling | 480 Watts |
| Program Power Handling | 240 Watts |
| AES Power Handling | 120 Watts |
| Voice Coil Diameter: | 1.5" |
| Diaphragm Material: | Aluminum |
| Sensitivity: | 107dB |
| Impedance: | 8 Ohms |
| Frequency Response: | 1.6KHz - 20KHz |
| Package Quantity: | 1 |
| Magnet Weight | 14.3 Oz |
| Replacement Diaphragm: | PRO-TW320VC |
| Magnet | Ferrite |
| Measurements | |
| Overall Depth | 2.57" |
| Mounting Depth | 2.22" |
| Overall Width | 4.01" |
| Cutout Diameter | 3.54" |
